Comprehensive Details of UPF (Video Course)

Date: 28th Aug, Sunday

Time: 9:30am IST

Duration: 4 hours

The course covers following each of the UPF command with a detailed explanation of all the options

Covers all version UPF1.0, UPF2.X and UPF3.X commands. The details are mentioned below

  • Navigation Commands – set_scope, set_design_top

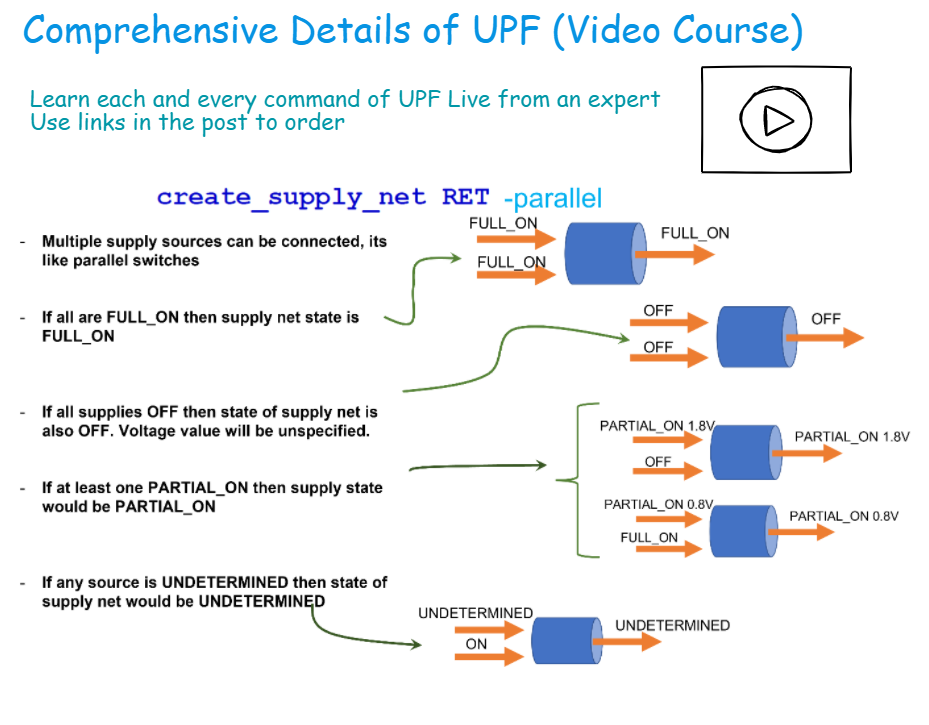

  • Supply Nets – create_supply_port, create_supply_net, connect_supply_net, create_power_switch
  • Power Domains – create_power_domain, set_domain_supply_net, create_composite_domain
  • Power States – add_port_state, create_pst,add_pst_state, add_power_state, descibe_state_transition
  • Simstates – add_power_state, set_simstate_behavior
  • Attributes – set_port_attributes, set_design_attributes, HDL and Liberty Attributes
  • Supply Sets – create_supply_set, supply set handled, associate_supply_set, connect_supply_set, set_equivalent
  • Strategies – set_repeater, set_retention_elements, set_retention, set_retenntion_control, set_isolation, set_isolation_control, set_level_shifter
  • Implementattion – map_retention_cell, map_isolation_cell, map_level_shifter_cell, map_power_switch_cell, use_interface_cell
  • Control Logic – create_logic_port, create_logic_net, connect_logic_net
  • HDL Interface – bind_checker, create_hdl2upf_vct, create_upf2hdl_vct
  • Code Management – upf_version, load_upf, save_upf, load_upf_protected, load_simstate_behavior, find_objects, begin_power_model, end_power_model,apply_power_model
  • Power Management Cells – define_always_on_cell, define_diode_clamp, define_isolation_cell, define_level_shifter_cell, define_power_switch_cell, define_retention_cell
